# Limio Stripe Payments Integration

{% hint style="info" %}
This guide covers using **Stripe for payment tokenization with Zuora for billing**. If you want to use **Stripe as your billing provider** (without Zuora), see the [Stripe Billing Integration](/integrations/stripe-billing-integration/stripe-billing.md) instead.
{% endhint %}

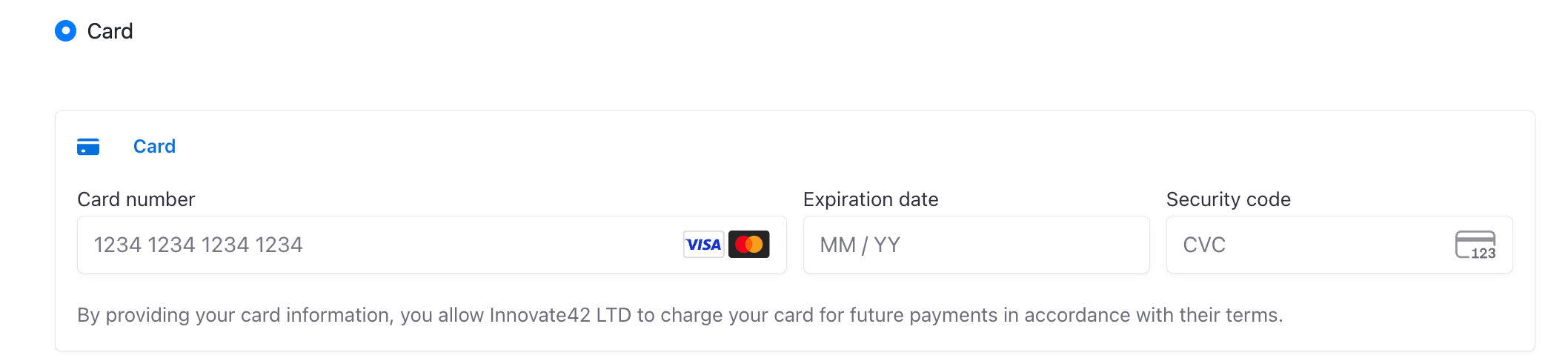

Limio supports using Stripe for collecting payments via credit card while using Zuora for subscription billing. The integration uses [Stripe Payment Elements](https://stripe.com/docs/elements) to vault the payment and [Zuora Credit Card Reference Payments](https://knowledgecenter.zuora.com/Zuora_Payments/Process_payments/Payment_Pages_2.0/AC_Configure_Payment_Pages_2.0/Configure_Credit_Card_Reference_Payment_Pages_2.0_for_Stripe_v2) to store these as Payment Methods in Zuora. This tokenises the card directly in Stripe, and shares the token to Zuora.

<figure><img src="/files/GuvGAzvwdzUgm0acCGID" alt=""><figcaption></figcaption></figure>

Please note that this is a different approach from the standard Zuora approach of using a Zuora Hosted Payment Method or Payment Form. You can learn more about it [here](https://docs.limio.com/integrations/zuora-integration/configuring-payment-gateways/how-to-set-up-zuora-hosted-payment-methods-for-limio).

## **Prerequisites**

* You will need a Stripe account.
* You will need to activate Credit Card Reference Transaction payment method in Zuora for your Stripe v2 gateway.

## **Setting it up**

1. **Stripe Dashboard:**
   * Go to <https://dashboard.stripe.com>
   * In the left-hand menu, click on **Developers** → **API keys** to get a secret key
2. **Test access:**
   * Make sure to switch to “Test Mode” using the toggle on the left in the dashboard.
3. **API keys:**
   * Stored in Integrations tab under “Stripe”
   * Name doesn’t actually matter it always overwrites it with Stripe at the moment.
4. **Zuora configuration:**
   * In Zuora, you will need to create a Stripe payment gateway using this [documentation](https://docs.zuora.com/en/zuora-payments/manage-payment-gateway-integrations-and-payment-methods/set-up-payment-gateway-integrations/stripe-payment-gateway/set-up-and-configure-a-stripe-payment-gateway-instance/configuration-fields).

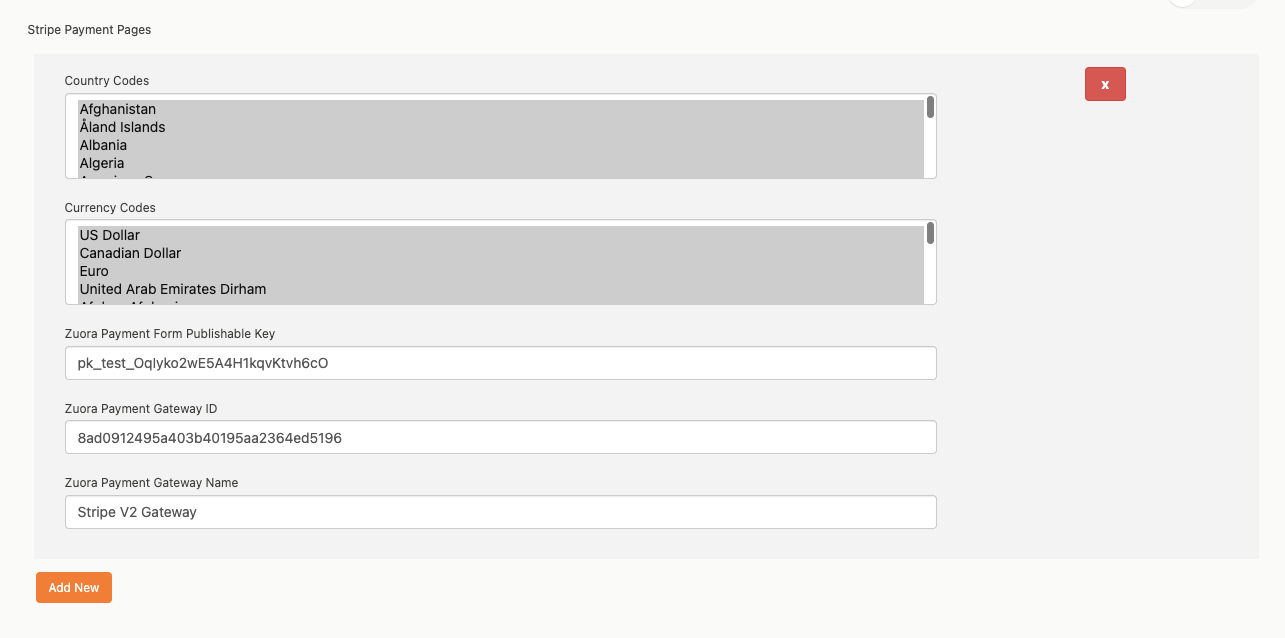

   * In Limio, go to Developer > Settings at `https://<tenant>.limio.com/developer/settings` to configure the gateway.<br>

     <figure><img src="/files/saGgGW0jgJnwrtpG4xPP" alt=""><figcaption></figcaption></figure>
   * Publishable Key can be retrieved in the same place as Secret Key above in Stripe

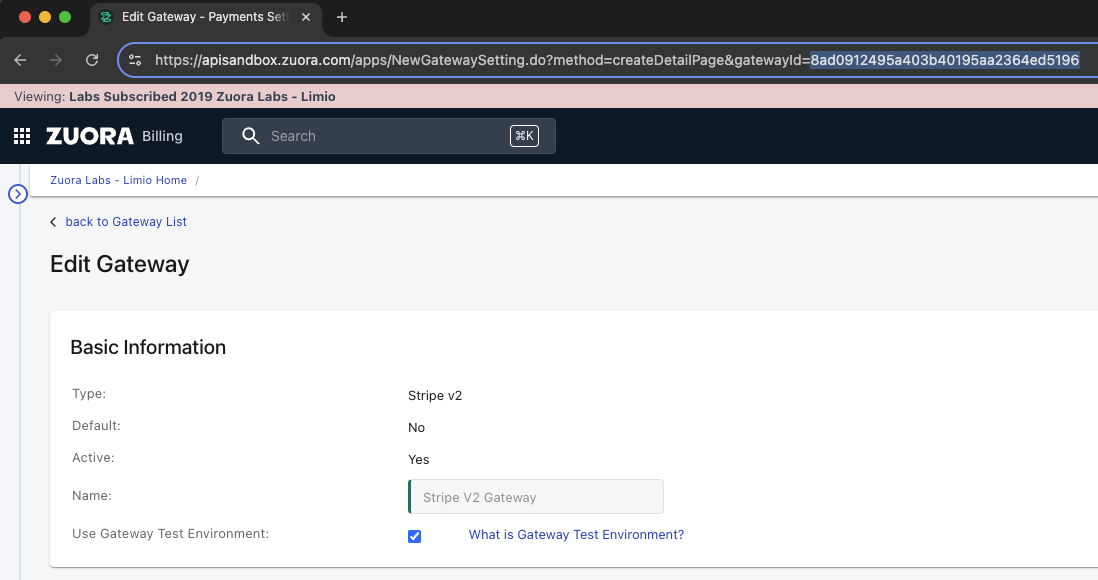

   * Zuora Payment Gateway ID can be retrieved from the Zuora Settings page for the Stripe payment gateway you created in Zuora earlier. This is in Zuora > Settings > Payments > Manage Payment Gateway. It will be visible in the URL bar *gatewayId=XXX*<br>

     <figure><img src="/files/YaWBY6nGtbkL2W6Z1crm" alt=""><figcaption></figcaption></figure>
   * Hit Save at the top of the page. Changes to your gateway will be immediate.

{% hint style="danger" %}
Make sure you use the **Zuora Payment Gateway ID** from the Gateway Settings. Do not copy the Page ID of a Zuora Hosted Payment Method Page. This feature does not rely on Zuora Hosted Payment Method Pages, which tokenises the card in Zuora ([learn more about Zuora HPM pages here](/integrations/zuora-integration/configuring-payment-gateways/how-to-set-up-zuora-hosted-payment-methods-for-limio.md)).
{% endhint %}

## **How it works**

### **Limio Page Builder configuration:**

* On the Limio Shop & Self-Service, a Limio Component renders the Stripe Payment Element.

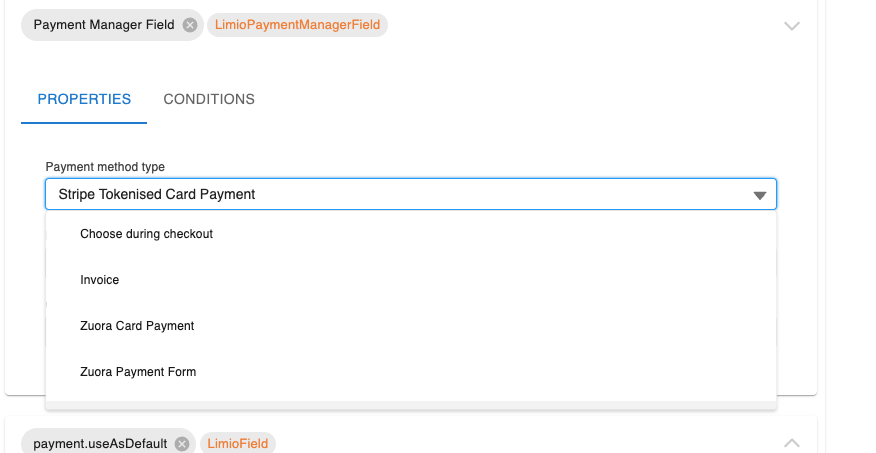

  * The Checkout Form > Payment Manager Field subcomponent will render Stripe for any offers that have Stripe as one of their payment methods.
  * The Self-service Form > Payment Manager Field subcomponent will render Stripe if it is added as an option in a default Field subcomponent, or in the Self-service Form's payment method type prop.<br>

    <figure><img src="/files/UKdBzadQnf1fELUhE3u8" alt=""><figcaption></figcaption></figure>

### **Back-End Processing:**

When using Stripe’s Payment Element with Limio, the payment flow proceeds as follows:

1. **PaymentIntent** **creation**\
   On page load, Limio creates or retrieves a one-time Stripe PaymentIntent via the Limio backend. This intent is tied to the current Limio basket.
2. **Rendering** **the** **Payment** **Element**\
   Once the PaymentIntent is ready, the Stripe Payment Element (iFrame) is rendered on the Limio Form or Limio Self-Service Form, allowing the customer to enter their payment details securely.
3. **Submitting** **the** **payment**\
   When the customer submits the Limio Order:
   * Stripe collects and confirms the payment details.
   * A Stripe token is generated and passed back to Limio.
4. **Zuora** **Payment** **Method** **creation**\
   Limio then uses the token to:
   * Create a **Stripe** **Customer** (if not already created).
   * Limio creates a corresponding **Zuora** **Payment** **Method** using Stripe’s token (for use in Referenced Transactions).
5. **Processing** **the** **payment**\
   If a payment is required:
   * Limio creates a **Credit** **Card** **Referenced** **Payment** in Zuora.
   * This payment is linked to the card saved via Stripe’s Payment Element and associated with the Stripe Customer.


---
