Subflow: Manage Add-Ons

LFS version: requires Limio for Salesforce v12.31 or later

Limio version requirement: requires Limio v98 or later

In this article, we will delve into a new flow designed for managing add-ons on existing subscriptions.

As a part of , Manage Add-Ons extends it's functionality and aims to enhance customer experience.

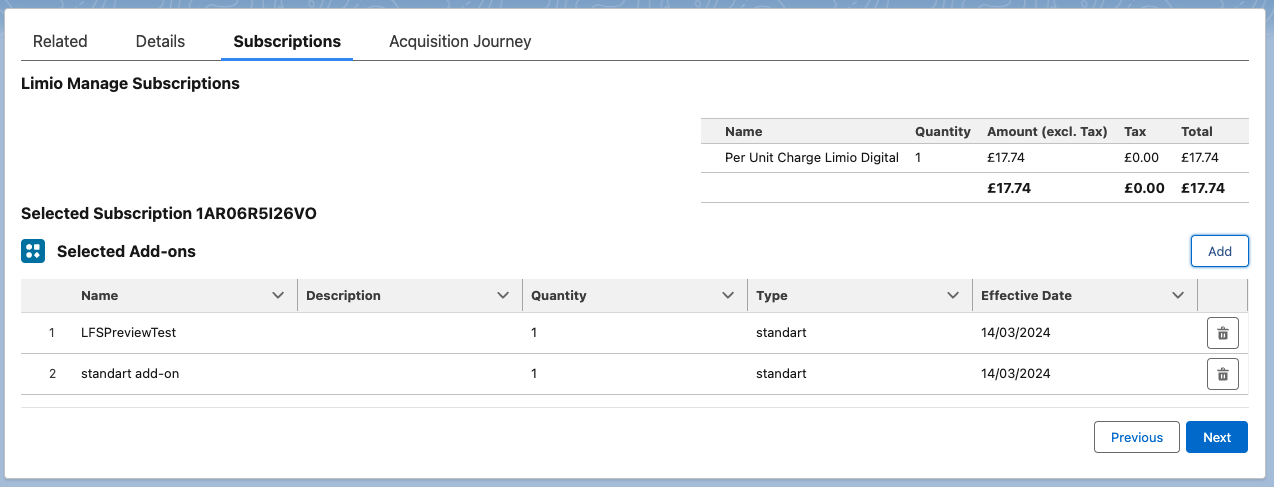

Screenshot 2024-03-14 at 15.18.49.png

*user view of a subscription with an existing add-on after adding the second add-on

---

How to enable Manage Add-Ons action:

This action is hidden by default. In order to make it visible, follow these steps:

1. Navigate to Custom Metadata Types -> icAssistConfig -> Manage records -> Subscription Actions

2. Edit the Config field:

   1. add a new allowManageAddOnsAction boolean property and set it to true.

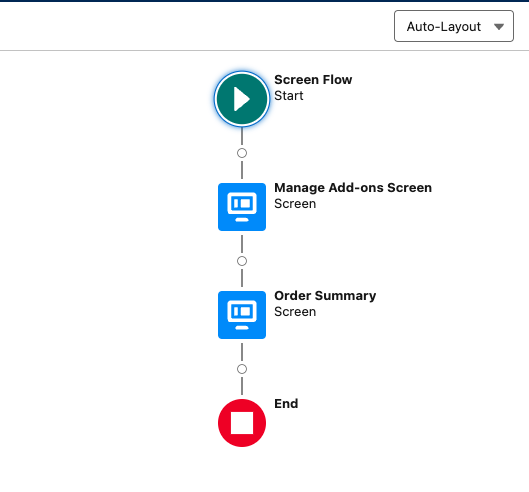

Flow overview

This flow consists of the following elements:

Screenshot 2024-03-12 at 10.28.09.png

1. Manage Add-ons Screen - contains two components:

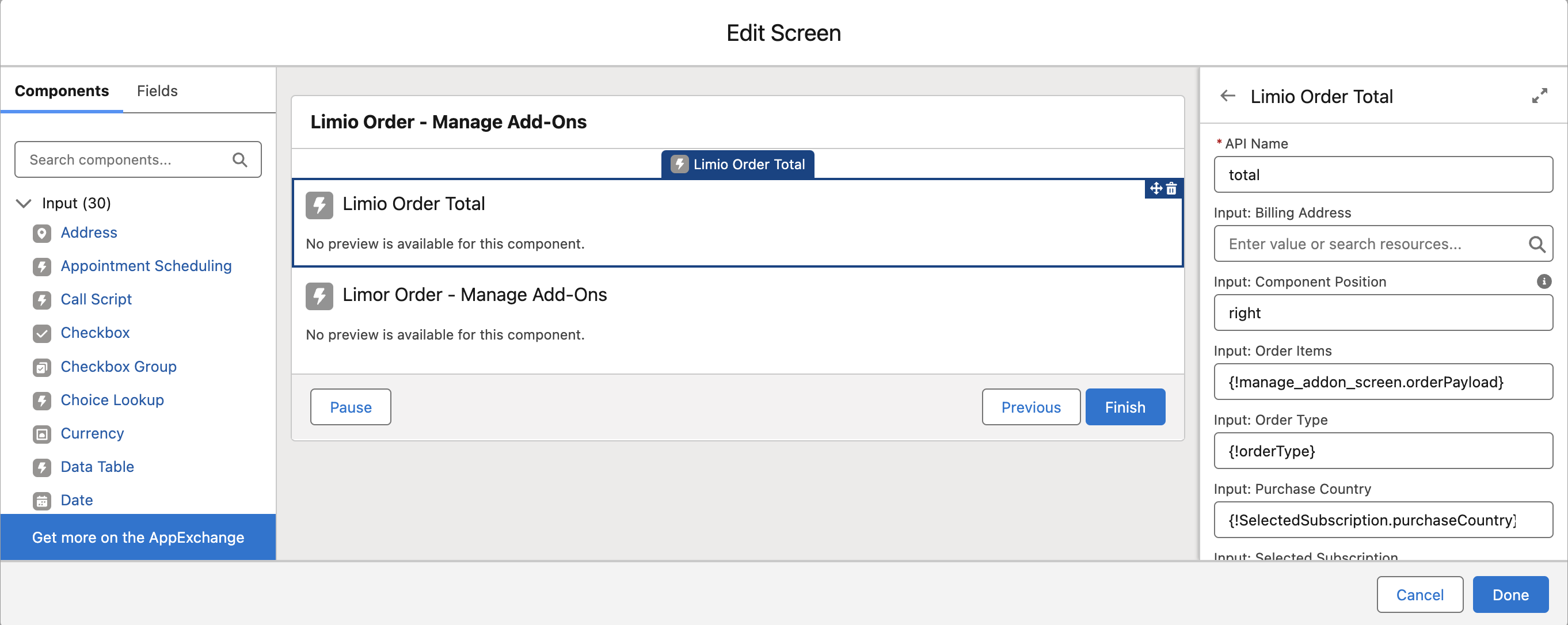

Limio Order Total - renders Zuora Preview for the order total

Screenshot 2024-03-12 at 16.35.15.png

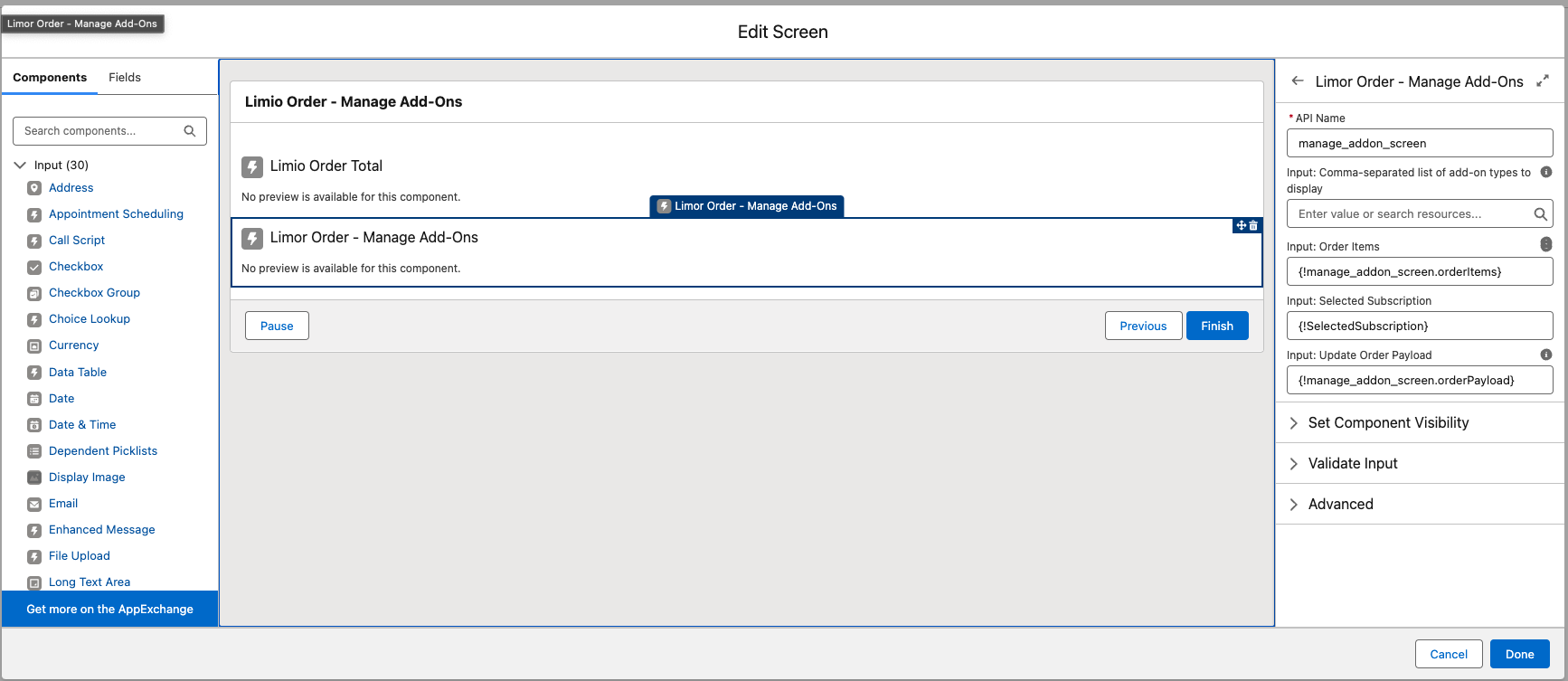

Limio Order-Manage Add-Ons - accepts Selected Subscription and additionally self-references orderItems and orderPayload to preserve the values in case on the screen re-rendering. It allows selecting an add-on, changing quantity on the selected item and publishes these updates back to the flow.

2. Order Summary - consistently with the other Manage Subscription flow journeys, this component displays a brief summary of the order and order total, and allows submitting the order to Limio.

Screenshot 2024-03-14 at 15.35.19.png

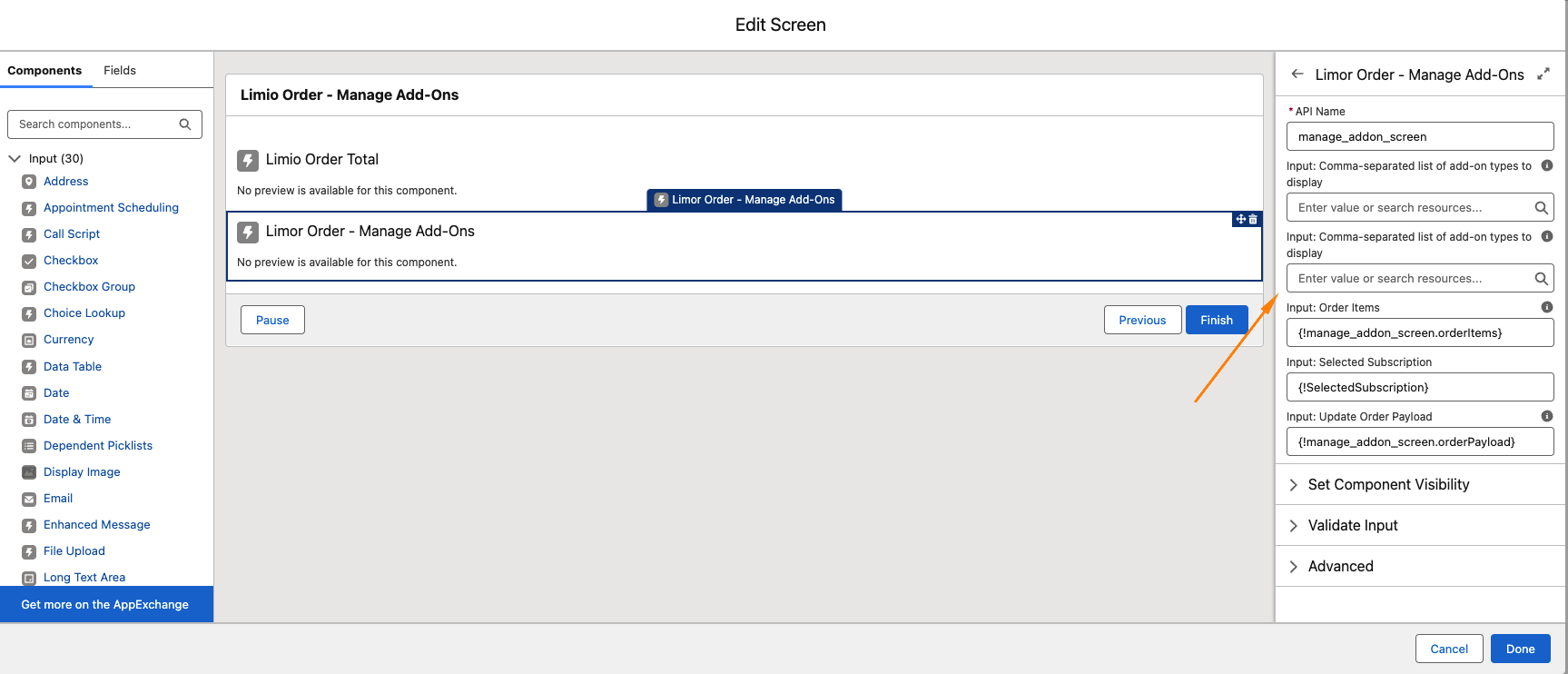

How to customise the experience

Screenshot at Mar 12 16-47-19.png

Specify types of add-ons to choose from in the selector modal following the instructions in
